How to Flash MediaTek (MTK) Device Using SP Flash Tool.

Requirments: Android Smartphone should have battery charge at- least 40% - 50% to perform the flashing  process.



Smart Phone Flash Tool Step by Step Tutorial:

Step 1: First Download and Install Device USB Drivers on your computer. Already have installed skip this step.
Step 2: Power off and remove the Battery. If it not is removable only Power off your Android Device.
Step 3: Open your browser and download Firmware (ROM) that you want to flash on your android device. After download extract it on your Computer.
Step 4: Download Smart Phone Flash Tool (SP Tool). Extract on your computer. After extracting .. See below picture.



Step 5: Now open (Double Click) Flash_Tool

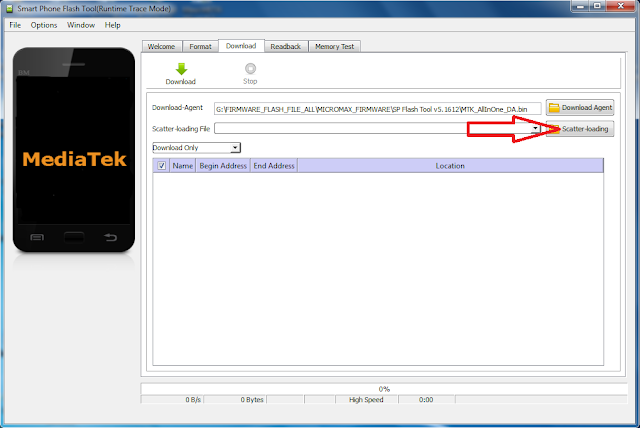

Step 6: When Smart Phone Flash Tool (SP Tool) is launched and then Click Download Tab. Find Scatter File Click scatter- loading button.

Step 7: Now locate scatter file. Go to Firmware (ROM) folder / find scatter  MT6xxx_Android_scatter.txt file.

Step 8: Now, Click on the Download Button to Start the Flashing Process.



Step 9: Now, Press Vol Down button few seconds and Connect your SmartPhone to the Computer using UBS cable. So that your computer easily detect your android smartphone.

Step 10: Once your Flashing is completed, below picture will appear.




Step 11: Close the Smart Phone Flash Tool (SP Tool) and disconnect you android device. remove USB cable re-insert battery and Turn ON your Phone.

Congratulations, Now your Android Device successfully running.

BEWARE : Use Right ROM Firmware file and scatter. if you mistake your android device will dead and keep mind your device Battery Charge more than 40 - 50 percent.

# Take backup of important data before flashing using SP Tool. Because during the lashing process your personal data will be lost permanently.

# After Flashing your android device go to setting >backup & reset > reset manually.

# After Flashing Your android device Check IMEI Number  press key *#06#.  if null / invalid and see How to Repair IMEI? Below Video Link...
